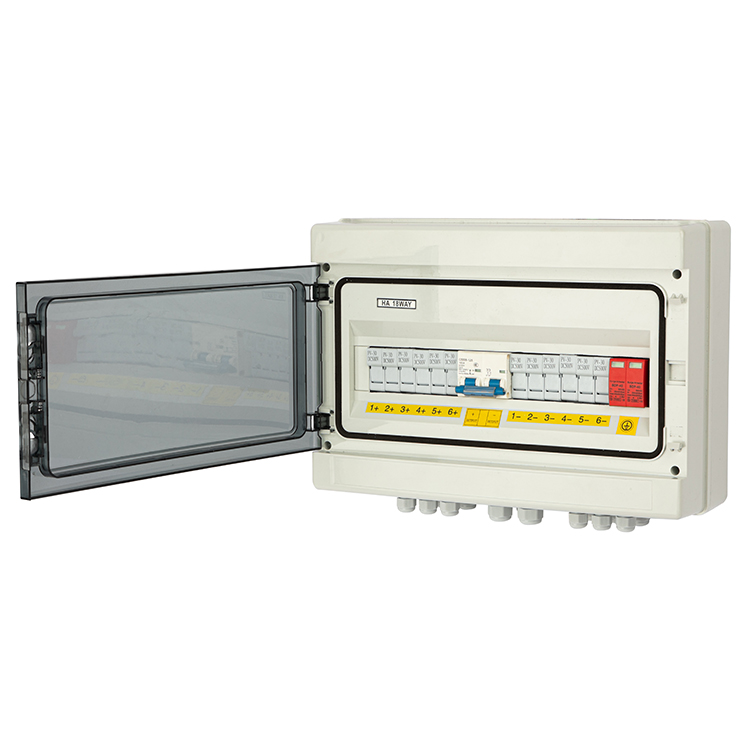

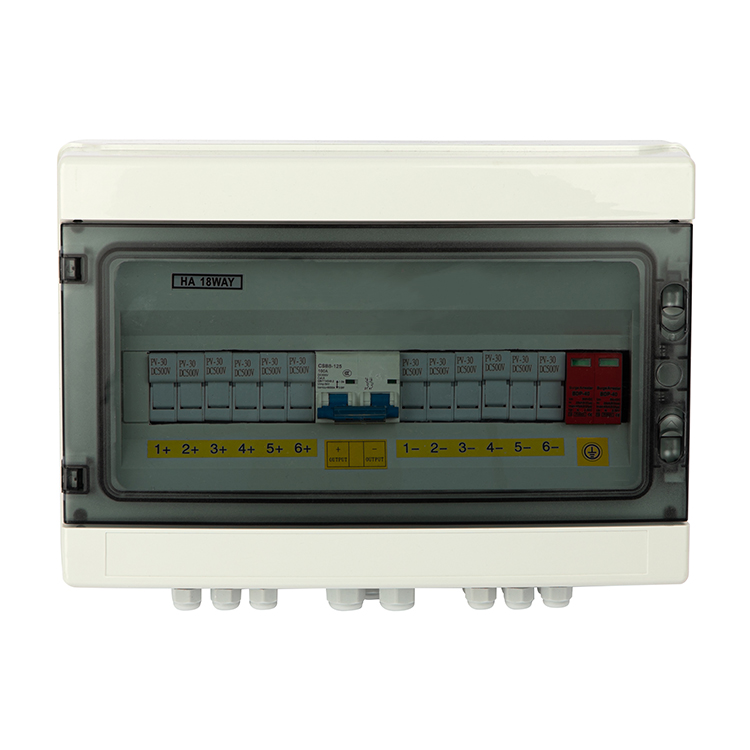

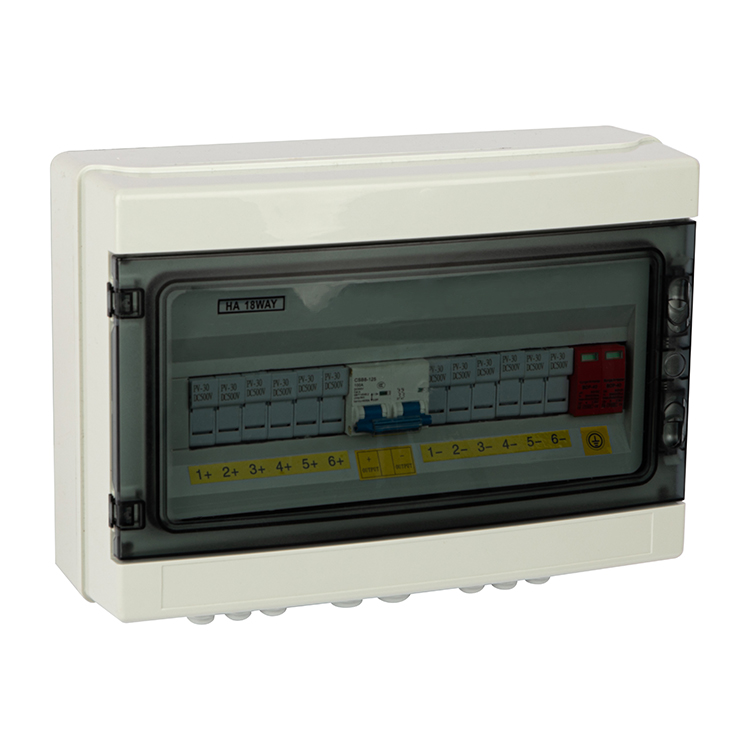

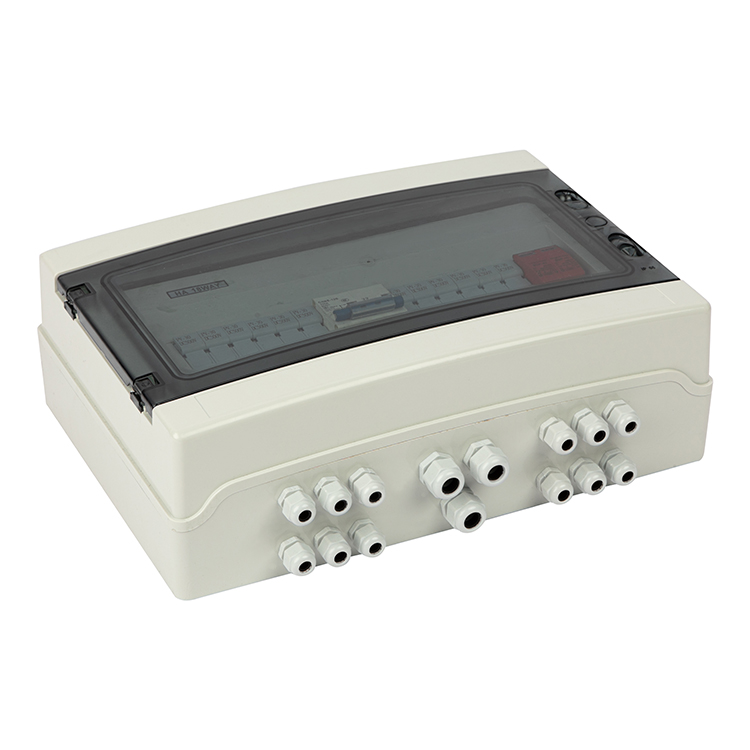

IP65 ABS BOX 6 In 1 Out 63A 6 String Wire Fuse PV Combiner Box
- Model No.:MFS-06M
- Product Name:PV Combiner Box
- Installation Method:Wall Mounting Type
- Material:ABS
- Max.dc Voltage:1000VDC
- Max.PV arry parallel input strings:6
- Max Fuse Capacity per string(A):15A
- Max.Output Switch Current:63A
- Production Grade:IP65
- Operating Temperaturer:-20℃~+60℃
- Elevation of Temperature:2km
KEY FEATURES
High reliability. Equipped with PV-specific fuses, surge protectors, DC breaker or rotary isolation switch.
Strong adaptability. IP65 protection, waterproof, dustproof and UV resistant. It passed strict high and low temperature test, suitable for a wide area.
Simplified wiring and installation, convenient for end-users.
Flexible configuration. Applicable to monocrystalline silicon and polycrystalline silicon.
TECHNICAL SPECIFICATION
| Drive Model | MFS-01M | MFS-02M | MFS-03M | MFS-04M | MFS-06M | MFS-04M | MFS-06M | MFS-08M | MFS-10M | MFS-12M | MFS-14M | MFS-16M | MFS-18M | MFS-20M | MFS-24M |
| Max. DC Voltage | 1000VDC | ||||||||||||||
| Max. PV Arry Parallel Input Strings | 1 | 2 | 3 | 4 | 6 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
Max. Output Switch Current | 32A | 32A | 32A | 50A | 63A | 55A | 63A | 125A | 160A | 180A | 180A | 240A | 270A | 300A | 330A |
| Max Fuse Capacity Per String(A) | 15A | ||||||||||||||
| Number of Output Strings | 1 (Support customization for output number) | ||||||||||||||
| Surge Protection DC | Type II/In=20KA,Imax=40KA,Ucpv=1000VDC | ||||||||||||||
| Category of Test | II grade protection | ||||||||||||||
| Protection Grade | IP65 | ||||||||||||||
| Output Switch | DC isolation switch(standard)VDC circuit breaker(optio nal) | ||||||||||||||
| Communication Mode/Protocol(optional) | RS485 bus/standard modbus-RTU protocol | ||||||||||||||
| SMC4 Waterproof Connectors | Standard | ||||||||||||||
| PV DC Fuse | 15A (Recommend 15A, support other ampere) | ||||||||||||||
| PV Surge Protector | Standard | ||||||||||||||
| Monitoring Module | Optional | ||||||||||||||
| Preventing Diode | Optional | ||||||||||||||
| Box Material | ABS | Coated Iron | |||||||||||||
| Installation Method | Wall mounting type | ||||||||||||||
| Operating Temperature | -20℃~+60℃ | ||||||||||||||
| Elevation of Temperature | 2km | ||||||||||||||
| Permissible Relative Humidity | 0-95%,no condensation | ||||||||||||||
| Remark: For more model, please contact MINVON for more details, accept customized service | |||||||||||||||
